GenerLink Home Backup Installation

What GenerLink does

GenerLink, manufactured by Global Power Products, is a UL 1008M-listed transfer switch that mounts behind or adjacent to your electric meter. During an outage, it provides a single, safe connection point for a portable generator or a compatible vehicle power source — no extension cords through windows, no rewiring, no subpanel.

When utility power fails, you connect your power source to the GenerLink with the proprietary GenerLok cord. The transfer switch isolates your home from the utility grid before generator power reaches the panel, which prevents backfeed and protects utility line workers. Power then flows to your home's existing circuits — including hardwired loads that extension cords can never reach, such as well pumps, sump pumps, furnaces, lighting, and security systems — within the capacity of the connected source. A green indicator light shows when utility power has been restored.

GenerLink is a manual transfer system. You decide which circuits to run by managing breakers at your panel; the device does not manage loads automatically. It is always installed and ready, so when a storm is forecast, your plan is already in place.

Who GenerLink may suit

GenerLink is designed for single-family homes with single-phase 120/240-volt service rated 200 amps or less. It may be a good fit if you:

• Own a portable generator and want to power hardwired loads safely instead of running extension cords
• Own a compatible Ford F-150 PowerBoost Hybrid or F-150 Lightning with the 240-volt Pro Power Onboard outlet and want vehicle-to-home backup without the cost and complexity of a fully automatic bidirectional system
• Want backup power installed and ready before the next outage, with a connection that takes minutes rather than a scramble for cords
• Want a lower-cost alternative to a whole-home standby generator or an automatic V2H system

It is typically not suitable for homes with 320- or 400-amp services, three-phase power, or multi-unit buildings, and it is not a substitute for evaluating whether your electrical system needs upgrades. Older systems may need work before a GenerLink can be installed. Compatibility is confirmed case by case — never assumed.

Compatible power sources

GenerLink works with portable generators that connect through the GenerLok cord, and — for compatible vehicles — with Ford's 240-volt Pro Power Onboard outlet through the GenerLok cord plus the Ford Vehicle Connector. The two GenerLink models differ in how much continuous power they can pass through:

• 30-amp GenerLink (MA23-N / MA23-S):
  L14-30 locking connection, up to 7,200 watts continuous. The S model adds 75 kA per-phase whole-home surge protection.
• 40-amp GenerLink (MA24-N / MA24-S):
  14-50 connection, up to 9,600 watts continuous, with the same surge-protection option.

For vehicle backup, the manufacturer-verified compatibility is specific: Ford F-150 PowerBoost Hybrid (2021–2026) with the 7.2 kW Pro Power Onboard 240-volt outlet, and Ford F-150 Lightning (2022–2025) with the 9.6 kW Pro Power Onboard 240-volt outlet, connected through the GenerLok cord and Ford Vehicle Connector to a professionally installed GenerLink transfer switch, subject to local utility approval. Not every generator is compatible — plug type, wattage, voltage, and GFCI configuration all matter, and the manufacturer publishes a compatibility guide we use during review. Which model your utility approves, and who is permitted to install it, are determined by your utility.

Utility approval and meter compatibility

GenerLink can be installed two ways, and your utility's policy determines which is available to you:

• Meter-mounted (behind the utility meter):
  Requires utility approval. GenerLink reports that more than 800 U.S. utilities have approved meter-mounted installation. Depending on the utility, installation is performed either by utility personnel or by a licensed electrician. This is typically the faster and less invasive option.
• Meter-adjacent (in a meter panel next to the meter):
  For utilities that have not approved meter-mounted GenerLink but permit other transfer switches. Utility approval is typically not required for this configuration, but the work is more involved because a new meter panel is installed near the existing meter.

On the meter side, compatibility requirements are specific: form 2S meter sockets (ring or ring-less), single-phase 120/240-volt service rated 200 amps or less, and typically single-family homes. Many smart meters are compatible, but utility rules are verified before installation. Permit requirements vary by municipality and are checked as part of the project. Because utility approval and installation authority vary by territory, the first step is always to confirm what your utility allows — we do this as part of the compatibility check, before you commit to equipment.

GenerLink vs. automatic V2H

Both approaches can keep essential loads running during an outage, and both isolate the home from the grid. They are different systems with different trade-offs:

• GenerLink (manual transfer):
  During an outage, you connect the GenerLok cord, start the source, and manage loads at the panel. Lower equipment and installation cost, minimal new hardware, works with generators and compatible Ford trucks. It does not start, transfer, or manage loads automatically, and it does not integrate with solar or stationary batteries by itself.
• Automatic bidirectional V2H:
  Systems such as Ford Intelligent Backup Power or GM Energy V2H detect an outage, island the home, and restore power automatically, with system-level load management and, in some configurations, integration with solar and stationary storage. They require dedicated bidirectional equipment, a compatible vehicle, and more extensive installation.

If you already own a compatible Ford truck and want essential-circuit coverage at lower cost, GenerLink is often the practical entry point. If you want seamless, automatic whole-home or essential-load backup — or you are building an integrated solar-plus-storage system — an automatic V2H or battery-storage approach may fit better. We install and integrate both, and our V2H page covers the automatic systems in depth. V2H backup and vehicle-to-grid (V2G) export are also different things: exporting energy to the grid requires separate equipment capabilities, utility authorization, and an applicable program.

How installation works

Every GenerLink project starts with compatibility, not with a sales pitch. Here is the path from inquiry to a working installation:

1. Compatibility check:
   You share your utility, meter and service details, and the power source you plan to use (generator or vehicle). We verify the utility's GenerLink policy, installation authority, and approved model; confirm meter and service compatibility; and identify any electrical work your system may need first.
2. Scope and proposal:
   You receive a clear summary of the installation method (meter-mounted or meter-adjacent), required equipment, permits, and the work scope — with pricing based on your property, not a guess. If GenerLink is not a good fit, we tell you and explain the alternatives.
3. Permitting and scheduling:
   We handle permit applications where required and coordinate with your utility when the utility manages or must approve the meter work.
4. Professional installation:
   A short outage window is typical while the transfer switch is set. The manufacturer describes meter-mounted installation as a job measured in minutes; the meter-adjacent method takes longer because it adds a meter panel. Either way, the work is done to code by licensed electricians.
5. Testing and walkthrough:
   We test the system with your power source, confirm transfer behavior and indicator lights, and walk you through outage operation — including how to manage loads and when to disconnect after utility power returns.

The manufacturer recommends testing the system with your generator at least twice a year. If you later add solar, storage, or an EV charger, we can evaluate how the pieces fit together as one system.

Recent GenerLink installation

Completed residential GenerLink work, photographed after passing inspection. Meter faces are obscured in published photos to protect customer privacy. Select any photo to enlarge it.

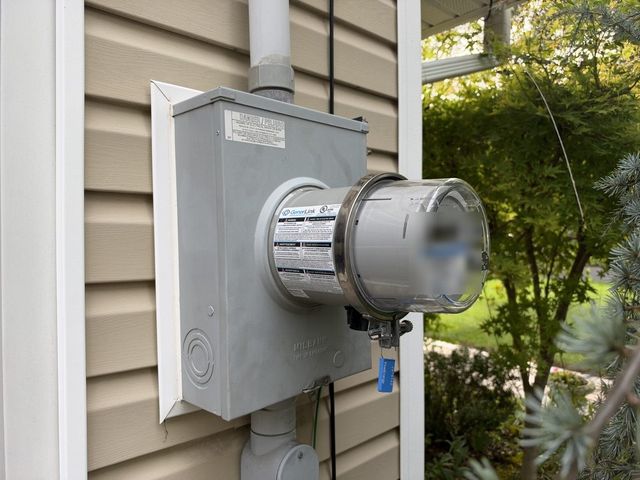

GenerLink Meter Installation — Exterior Overview

GenerLink transfer-switch collar installed at a residential meter with a new meter-socket enclosure, plumb conduit runs top and bottom, visible equipment grounding, and the utility seal tag in place.

GenerLink

Meter-mounted GenerLink with new meter socket

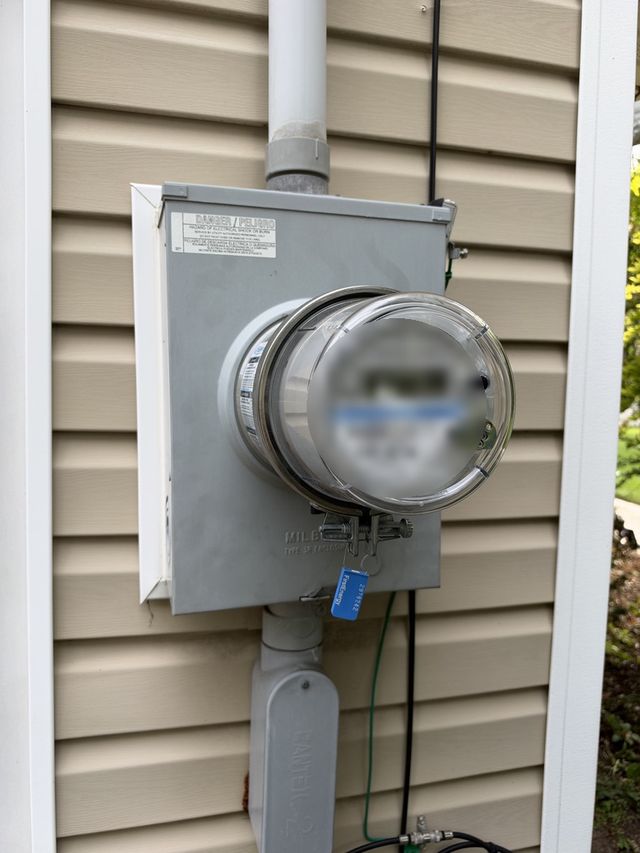

GenerLink Meter Installation — Detail

Close view of the GenerLink-equipped meter assembly: glass-domed smart meter, warning labeling, grounding conductor, and sealed connections on a clean exterior wall installation.

GenerLink

Meter and GenerLink assembly detail

What affects the cost of a GenerLink installation

We do not quote prices sight unseen, and published national averages never tell the whole story. The main factors that move the scope of work are:

• Installation method — meter-mounted versus meter-adjacent, which is driven by your utility's policy
• Which GenerLink model your utility approves (30-amp or 40-amp, with or without surge protection) and the associated GenerLok cord length
• Who your utility authorizes to perform the installation, and any utility charges
• Condition and configuration of the meter socket, service entrance, and grounding
• Any electrical work needed first — older systems may require upgrades before a GenerLink can be installed
• Permitting and inspection requirements in your municipality
• For Ford vehicle backup: whether your truck has the required 240-volt Pro Power Onboard configuration and needs the Ford Vehicle Connector equipment

For context only: Ford and GenerLink have published national averages of roughly $250–$450 for meter-mounted installation and $1,000–$1,500 for meter-adjacent installation, with the GenerLink equipment bundle (transfer switch, GenerLok cord, and Ford Vehicle Connector) around $1,100 for compatible Ford applications. These are the manufacturers' published figures, not our quote. Your actual proposal reflects your utility's rules and your property's conditions.

GenerLink installation questions

What is GenerLink and how does it work?

GenerLink is a UL 1008M-listed, meter-mounted transfer switch manufactured by Global Power Products. It installs behind or adjacent to the home's electric meter and provides a safe connection point for a portable generator or compatible vehicle power source. During an outage, the transfer switch isolates the home from the utility grid before generator power reaches the panel, preventing backfeed to utility lines and powering hardwired loads such as lighting, well pumps, sump pumps, furnaces, and security systems within the capacity of the connected source.

Can a Ford F-150 power a home through GenerLink?

Compatible F-150 PowerBoost Hybrid (2021–2026, 7.2 kW) and F-150 Lightning (2022–2025, 9.6 kW) trucks with the 240-volt Pro Power Onboard outlet can connect through the GenerLok cord, the Ford Vehicle Connector, and a professionally installed GenerLink transfer switch. Utility approval, meter compatibility, and available output must be confirmed for each property. Runtime depends on the vehicle's battery energy and the loads being supplied — there is no guaranteed runtime.

Does my utility need to approve the installation?

For meter-mounted installation behind the utility's revenue meter, yes. GenerLink reports that more than 800 U.S. utilities have approved meter-mounted installation. If your utility has not approved meter-mounted GenerLink but permits other transfer switches, the unit may be installed in a meter panel adjacent to the existing meter by a licensed electrician. We confirm your utility's requirements before recommending an approach.

What meters and services are compatible?

Meter-mounted GenerLink units require form 2S meter sockets (ring or ring-less), single-phase 120/240-volt service rated 200 amps or less, and are typically installed on single-family homes. They cannot be used on 320- or 400-amp services, three-phase systems, or most multi-unit buildings. Many smart meters are compatible, but utility requirements are verified first.

Is GenerLink the same as automatic V2H?

No. GenerLink is a manual transfer switch: during an outage you connect the source, start it, and switch loads yourself. Automatic bidirectional V2H systems such as Ford Intelligent Backup Power or GM Energy V2H detect an outage, isolate the home, and transfer automatically. Both isolate the home from the grid; they differ in automation, equipment, cost, and load management. Compare V2H systems here.

How long can backup power run my home?

Runtime depends on usable battery energy or fuel, starting state of charge, the loads supplied, and load management. Ford's published Pro Power Onboard estimates assume about 30 kWh of daily household use; actual runtime varies with your loads and the source's capacity. We do not promise fixed runtimes without a project-specific assessment.

Can it be installed on a home with solar?

Possibly, but it must be evaluated. The manufacturer advises consulting a licensed electrician and your solar provider, since additional components or configurations may be required. We review your interconnection setup, any existing energy systems, and utility rules before recommending GenerLink.

How do I get started?

Use the compatibility check below or call us. Provide your utility, your property address, your meter/service details if known, and the power source you plan to use — a portable generator, or a Ford F-150 with Pro Power Onboard. We will confirm what your utility allows, check meter and service compatibility, and tell you clearly whether GenerLink is a good fit or whether stationary battery storage, an automatic V2H system, or another approach serves you better.
